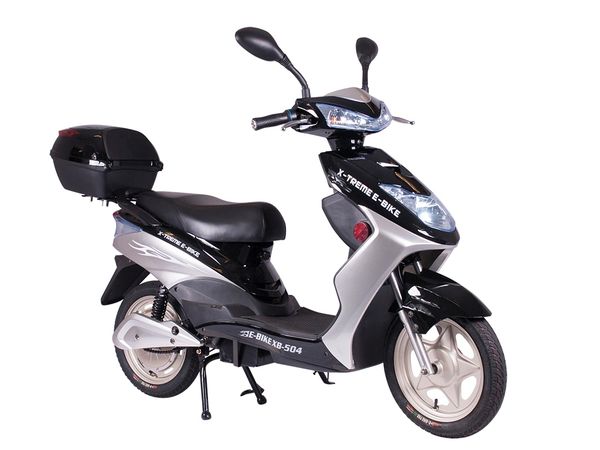

XB-504 Electric Bicycle Scooter
XB-504 Electric Bicycle Scooter
The XB-504 Electric Bike is the ultimate alternative for commuters that need a quick way to travel but do not want the expense of operating a vehicle or motorcycle. The XB-504 is classified as an electric bicycle (since pedals can be used) under the Federal Bicycle Law HR727, but the pedals do not need to be installed and this allows it to operate like an electric moped motorcycle but you do not need to register it or carry a drivers license to operate it.
The XB-504 is loaded with nearly all of the same features you will find on our electric motorcycles, yet the XB-504 costs 75% less.
The power of the XB-504 electric bike comes standard with a large 500 watt brushless rear hub motor (installed in the center of the rear wheel) that is powered by 4 large high power batteries that will last up to 5 years & can be re-charged more than 500 times. The electric bicycle will travel 20 - 25 miles on a single charge which is provided by the battery pack located inside of the electric bicycle moped.
The XB-504 is a great tool for commuters, or those working on large campuses.
Since local and state laws may vary, we recommend that you check with your local DMV for restrictions and guidelines to operating this unit in your area in case they have special provisions which may overrule the Federal Bicycle Law.
|
Power |
Electric |
|
Watts |
500 Watts |
|
Motor Type |
Brushless Hub Motor - Motor is in rear wheel |
|
Maximum Riders |
2 - may carry passenger |
|
Amps |
48 Amp Circuit |
|
Volts |
48 Volts |
|
Batteries |
4 - 12 volt 12 AMP (4 batteries) (48 Volts) |
|
Tire Size |
16x2.5 on 16 |
|
Charger |
Smart Charger Included |
|
Battery Pack Info |
Simply plug charger into bike |
|
Tool Kit |
Included |
|
Speed |
20 MPH |
|
Distance |
Up to 20 - 25 miles per charge - can still pedal |
|
Throttle Type |
Variable speed control - Twist throttle on right grip |
|
Key Start |
Yes |
|
Seat Kit Included |
Yes |
|
Storage Area |
Large area below seat + Large trunk +area near key |
|
Braking System |
Front And Rear Brakes |
|
Drive System |
Rear Hub Motor (No Chains or belts) |
|
Foldable |
Partially - Remove front wheel for transport |
|
Head Light |
Yes - LED |
|
Tail Light |
Yes |
|
Brake Light |
Yes |
|
Blinkers |
Yes |
|
Electric Horn |
Yes |
|
Spring Loaded Seat |
Yes |
|
Speedometer |
Yes |
|
Battery Indicator |
Yes |
|
Cargo Rack |
Included |
|
Suggested Max Weight |
300 Lbs |
|
Measurements |
Wheel to wheel 57 |
|
Carton Size (LxWxH) |
60x18x32 |
|
Bicycle in Box Weight |
206 lbs |
|
Bicycle Weight |
176 lbs |
|
Warranty |
90 Day X-Treme Warranty 6 Month Battery Warranty |
|
**Note** |
Trunk/Storage box with key included |
